Description

Brand Name : ZYSL Model Number : 6304 2rs Type : deep groove ball bearing Industrial Use : CNC machine and so on Printing Handling : Matt Lamination Place of Origin : China Custom Order : Accept

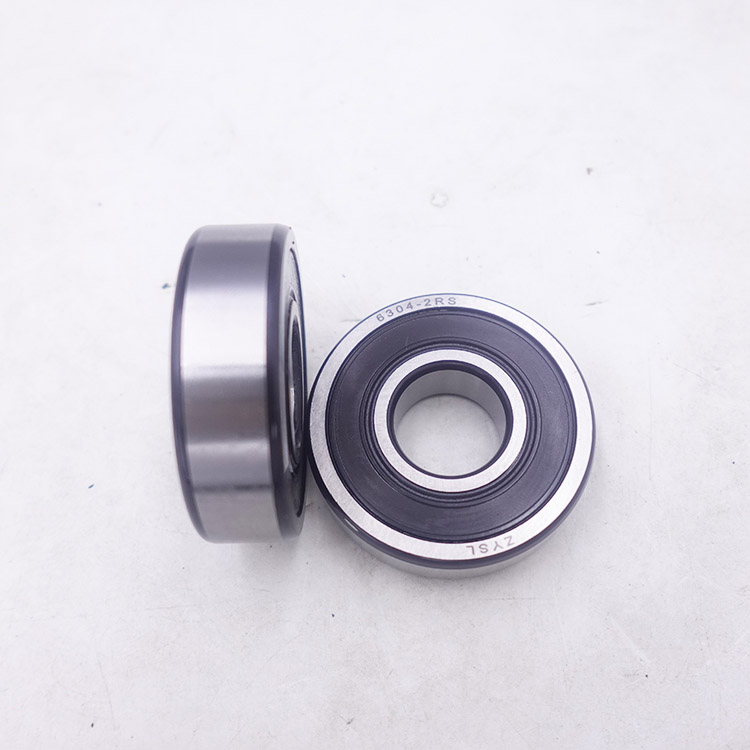

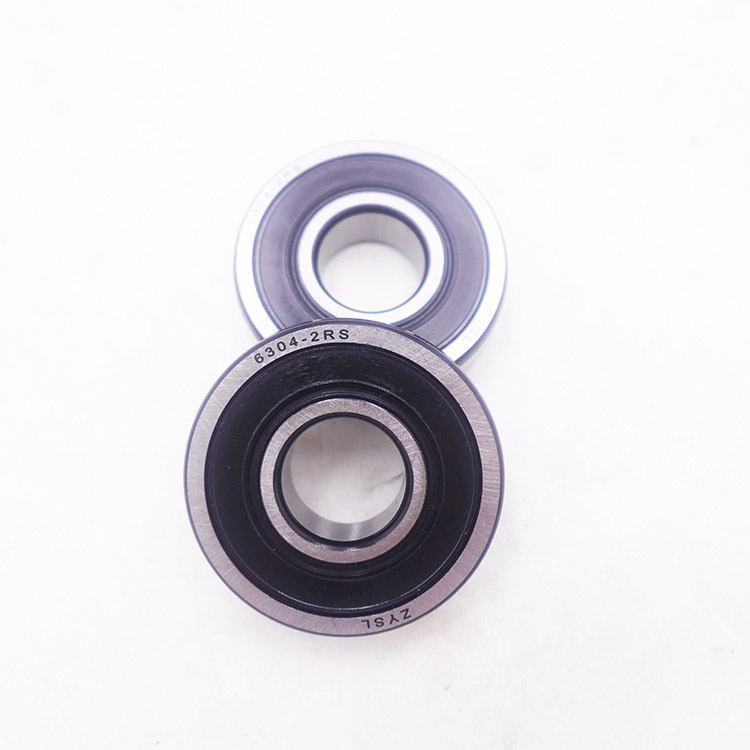

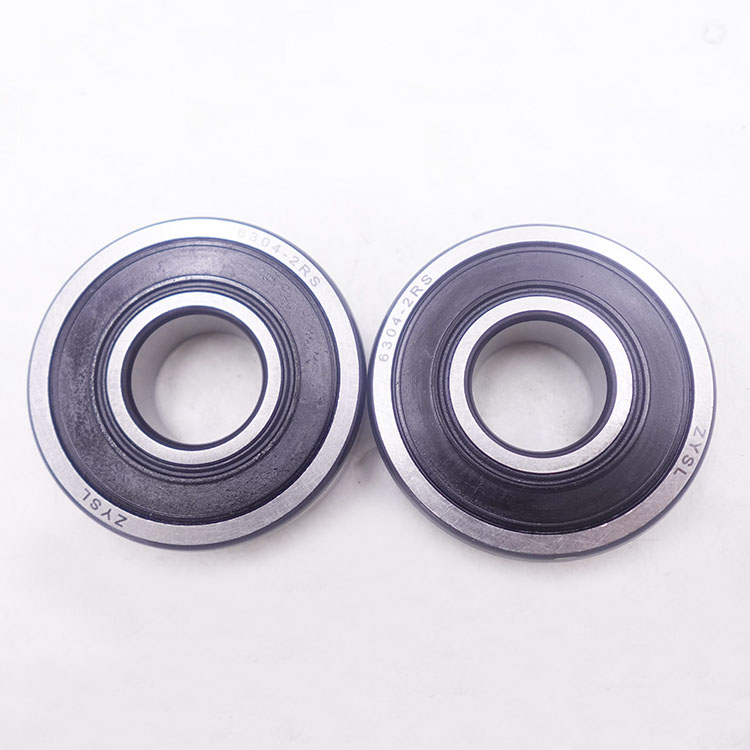

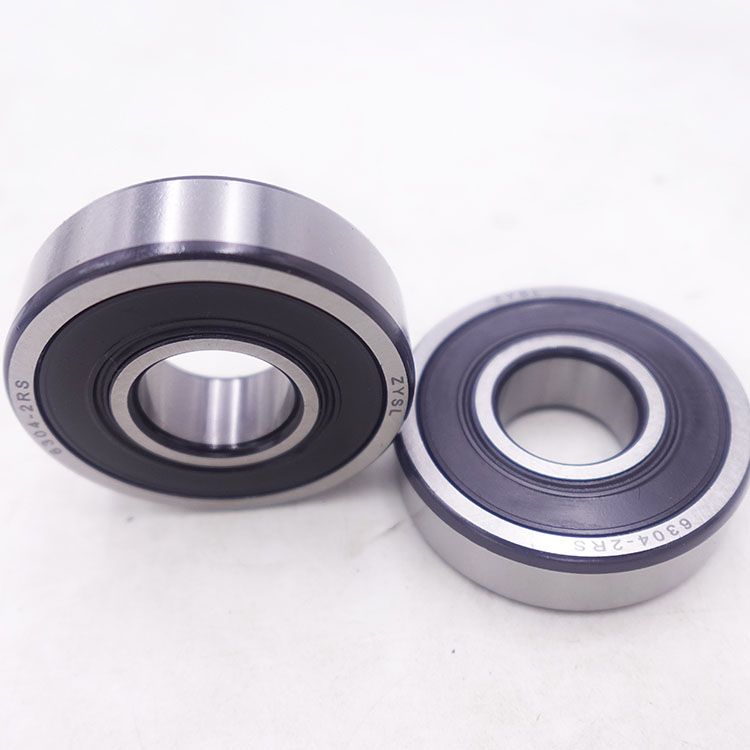

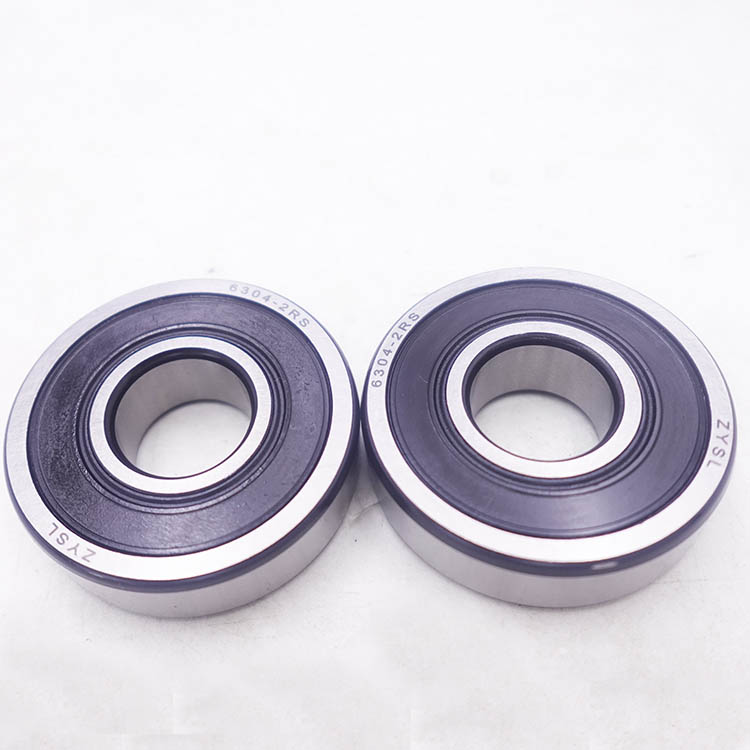

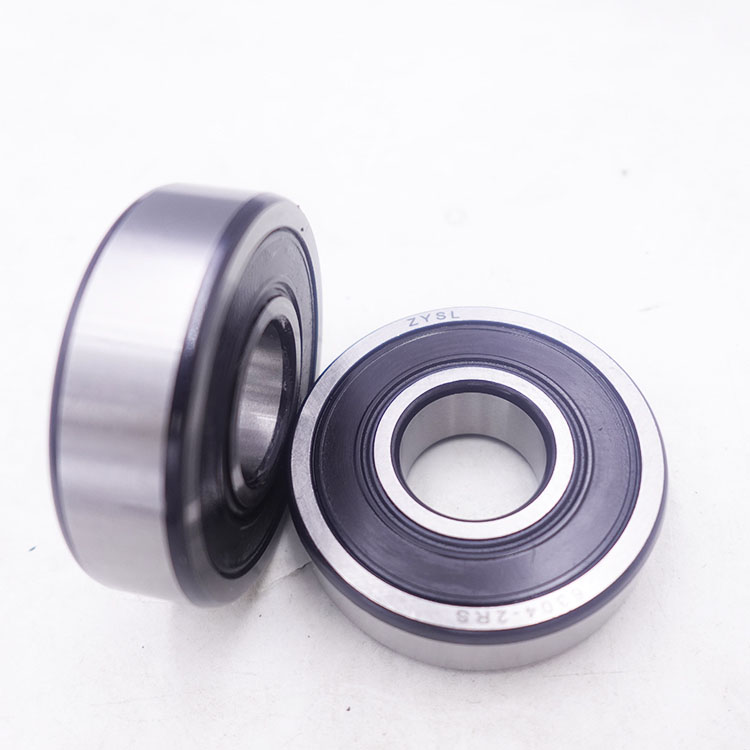

Product show

Specifications

6000 series deep groove ball bearings

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1.0	16	10.3	10000	14000	0.115
6008	40	68	15	1.0	16.8	11.5	8000	11000	0.19

6200 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
624	4	13	5	0.2	1.15	0.4	36000	45000	0.0032
625	5	16	5	0.3	1.76	0.680	32000	40000	0.0050
626	6	19	6	0.3	2.34	0.885	28000	36000	0.0080
627	7	22	7	0.3	3.35	1.400	26000	34000	0.0130
628	8	24	8	0.3	4.00	1.590	24000	32000	0.0170
629	9	26	8	0.3	4.55	1.960	22000	30000	0.0190
6200	10	30	9	0.6	5.10	2.390	19000	26000	0.0300
6201	12	32	10	0.6	6.10	2.750	18000	24000	0.0360
6202	15	35	11	0.6	7.75	3.600	17000	22000	0.0460
6203	17	40	12	0.6	9.60	4.600	16000	20000	0.0650
6204	20	47	14	1.0	12.80	6.650	14000	18000	0.1070
6205	25	52	15	1.0	14.00	7.850	12000	16000	0.1250
6206	30	62	16	1.0	19.50	11.300	10000	13000	0.2010

6300 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
6300	10	35	11	0.6	8.2	3.5	18000	24000	0.053
6301	12	37	12	1.0	9.7	4.2	17000	22000	0.06
6302	15	42	13	1.0	11.4	5.45	16000	20000	0.082
6303	17	47	14	1.0	13.5	6.55	15000	19000	0.115
6304	20	52	15	1.1	15.9	7.9	14000	17000	0.144

6800 Series Miniature Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029

6900 Series Deep Groove Ball Bearing

N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pcs
693	3	8	3	0.15	0.56	0.18	44000	52000	0.0006
694	4	11	4	0.15	0.715	0.276	38000	47000	0.0018
695	5	13	4	0.2	1.08	0.43	34000	43000	0.0024
696	6	15	5	0.2	1.35	0.53	32000	40000	0.0038
697	7	17	5	0.3	1.61	0.715	30000	38000	0.0052
698	8	19	6	0.3	1.99	0.865	28000	36000	0.0073
690	9	20	6	0.3	2.48	1.09	27000	34000	0.0082
6900	10	22	6	0.3	2.7	1.27	25000	32000	0.009
6901	12	24	6	0.3	2.89	1.46	20000	28000	0.011
6902	15	28	7	0.3	3.65	2	19000	26000	0.016
6903	17	30	7	0.3	4.65	2.58	18000	24000	0.018
6904	20	37	9	0.3	6.4	3.7	17000	22000	0.036
6905	25	42	9	0.3	7.05	4.55	14000	18000	0.042
6906	30	47	9	0.3	7.25	5	12000	16000	0.048
6907	35	55	10	0.3	9.55	6.85	10000	14000	0.074

Our main products

Cargo transport security

Single box package	Carton+PP sack+Nylon strapping	Pallet+Nylon strapping+Black film

Frequently asked questions

Q: What is your minimum order quantity?

A:Small bearing:10 PCS. Big bearing: 1~5 PCS.
Customized bearing: 100~1000 pieces, depends on produce cost. Because for one of small orders costs are likely to be so high when need a new mold.

Q: How can I get a sample of 6304 2rs bearing to check your quality?

A: After price is confirmed, you can require samples of 6304 2rs bearing to check our quality. But you have to afford the express freight.

Q: What information should I let you know if I want to get a quotation?

A: 1)The model number

2) The sizes (ID*OD*B)

3) The material

4) The brand

5) Quantity

6) For customized bearings,if it is possible, please also provide with pictures or drawing for checking. Sample will be best for clarifying, If not, we will recommend relevant products with details for reference.

Company introduction

Company headquarters is located in Jinan. Covers an area of 1000 square meters; Office personnel 20 people, including 9 professionals proficient in many languages, 5 R&D staff has 20 years of work experience, the transportation is convenient, 50 minutes drive from Jinan Yaoqiang air port, 10 minutes from Jinan high-speed railway station. Factory is located in Liaocheng,covers an area of 3000 square meters.There are 120 skilled workers, among whom there are 2 proofing master has 20 years of work experience,two design staff has 10 years work experience, five QC has 15 years work experience;We can produce 10000 bearings every day.

Certification and Hot sale products

Purchase notes

Customized bearings

We can design the bearing according to your required types,sizes and application.
If you have drawing and datasheets, it is better. We will produce the bearing according to your drawing and datasheet totally.

Shipment

Small order for 6304 2rs bearing: by DHL/TNT/FedEx/Aramex ... express;
Large order for 6304 2rs bearing: by air plane/by sea transportation

Delivery

After receiving 100 percent of funds of 6304 2rs bearing to reach the account immediately arrange shipping company.

Receiving

Customers suggested unpack, inspect and sign for the goods when you receive the 6304 2rs bearing. If you find any problem, please contact us. We will help you contact the logistics company.

Issues occurred during use

The service life of the 6304 2rs bearing is not only related to its own quality, but also related to the installation method, load, speed, temperature and daily working hours.
If there is any problem in the use of the 6304 2rs bearing, please provide us with the above information in time so that our technicians can make an accurate and effective analysis.

Exchange

The exchange of 6304 2rs bearing can be in 7 days. If you find serious quality problems may apply replenishment. Before applying, please in our online contact Customer Service staff.

Contact us

	Jinan Shenglei Bearing Co.,Ltd is China's fastest serve bearings manufacturer. Founded in September 2001, engaged in the production and sales of bearings and related products. We have all apecifications and materials database, you can find similar products within 30 seconds.
	Contact: Ellen Email: [email protected] Skype: +8618668909563 MP/Whatsapp: +8618668909563 Wechat:18668909563

Warm Notice:

If you are interested in our 6304 2rs bearing, please bookmark our Facebook, which is easier to find us, if you need it one day in the future. We do appreciate it for your kindness.
