Description

Brand Name : ZYSL Model Number : K22 30 24 Type: needle cage roller bearing Industrial Use : CNC machine and so on Printing Handling : Matt Lamination Place of Origin : China Custom Order : Accept

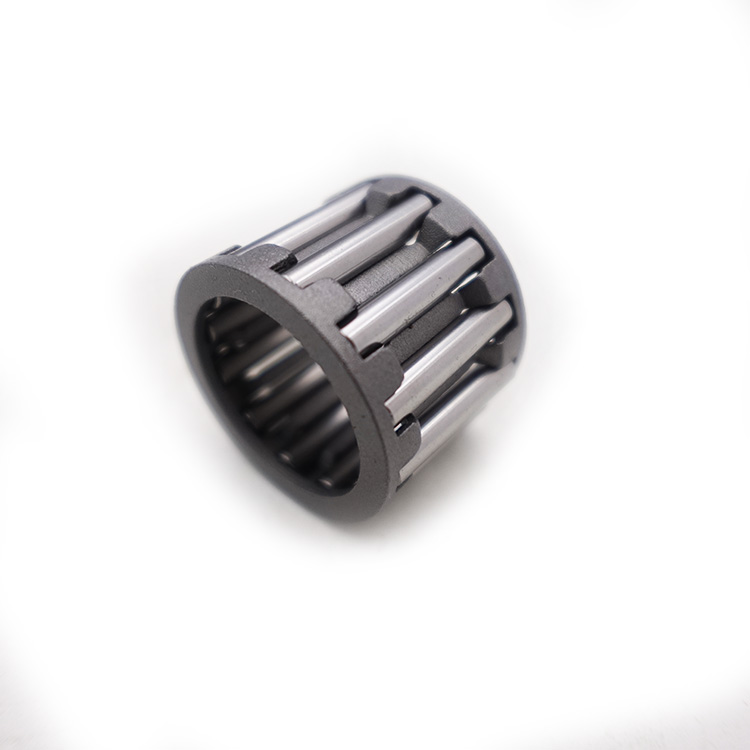

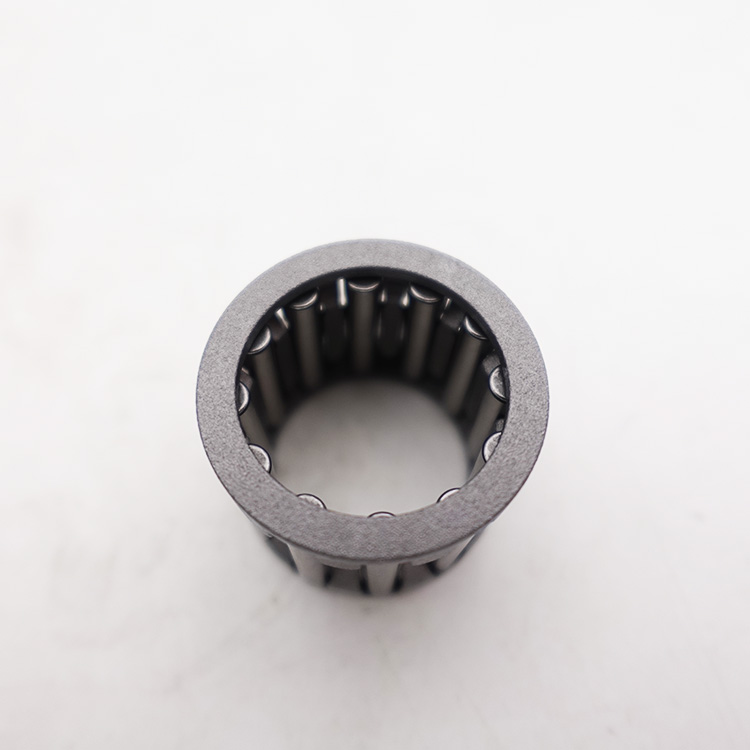

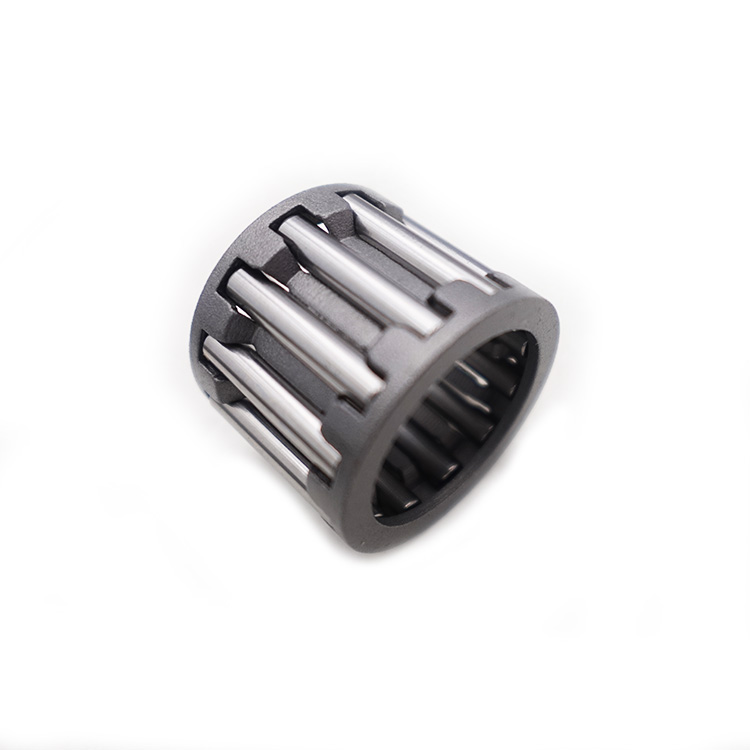

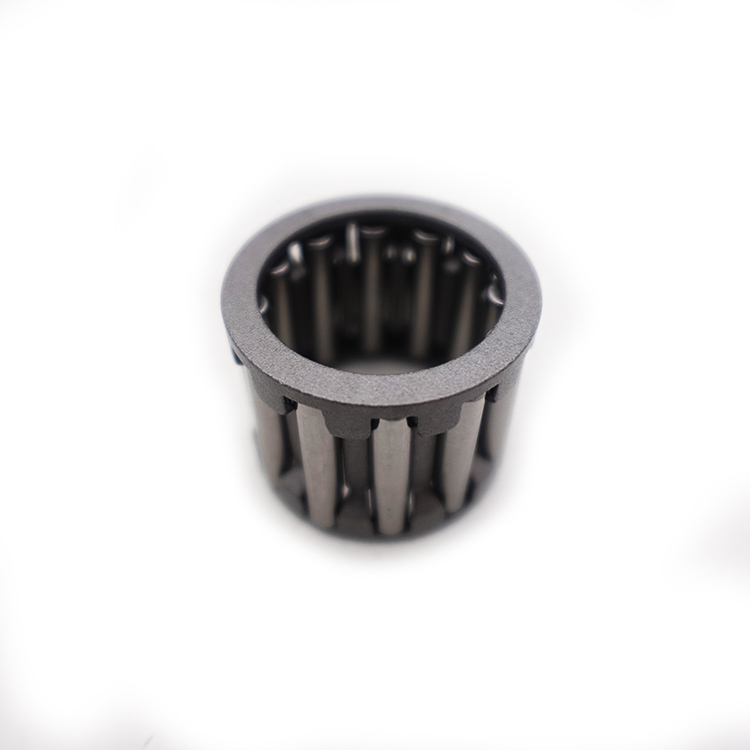

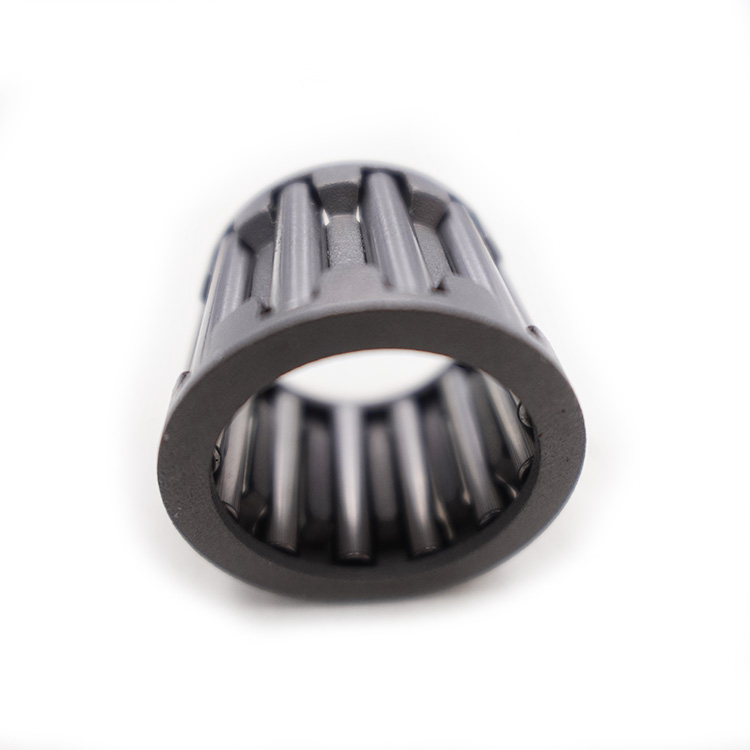

Product show

Specifications

Shaft	Bearing Designation		Mass	BoundaryDimensions			BasicLoadRating		Limiting Speed
Diameter
			Approx	Fw	D	C			Oil
	CurrentCode	OriginalCode					Dynamic	Static
mm			g	mm			N		rpm
17	K17X21X10	29241/17	5.6	17	21	10	7900	10100	21000
	K17X21X13	39241/17	7.5	17	21	13	10000	14100	21000
	K17X21X17	59241/17	9.5	17	21	17	12000	17400	21000
	K17X23X14	29243/17	11.5	17	23	14	11000	15000	21000
18	K18X22X10	29241/18	6.1	18	22	10	8200	9900	20000
	K18X22X13	39241/18	7.7	18	22	13	9000	12100	20000
	K18X22X17	59241/18	10.8	18	22	17	11900	17600	20000
	K18X24X12	19243/18	11.6	18	24	12	11200	12900	20000
	K18X24X13		12.6	18	24	13	12900	14900	20000
	K18X24X13.5		13	18	24	13.5	12900	14900	20000
	K18X24X20	49243/18	19	18	24	20	20000	26500	20000
	K18X25X14		14.9	18	25	14	16500	18800	20000
	K18X25X22		24.3	18	25	22	22900	28400	20000
	K18X26X14		19	18	26	14	18000	20000	18000
	K18X28X16	19244/18	24	18	28	16	19000	18400	19000
19	K19X23X13		8.2	19	23	13	9300	13000	20000
	K19X23X17		11.1	19	23	17	12000	18600	20000
20	K20X24X10	29241/20	6.5	20	24	10	8700	12100	19000
	K20X24X12		8	20	24	12	9600	13800	19000
	K20X24X13	39241/20	8.9	20	24	13	9600	13800	19000
	K20X24X17	59241/20	11.2	20	24	17	12400	20000	19000
	K20X26X12	19243/20	13.2	20	26	12	13100	15700	19000
	K20X26X16	K9249/20	17.5	20	26	16	18000	25000	18500
	K20X26X17	39243/20	18.2	20	26	17	18700	25500	19000
	K20X26X20	49243/20	22	20	26	20	20600	28500	19000
	K20X28X20	19245/20	26.8	20	28	20	23400	28000	18000
	K20X28X25	29245/20	36.2	20	28	25	30000	28500	18000
	K20X30X30	39245/20	56	20	30	30	35000	41000	18000
21	K21X25X13		9	21	25	13	9600	14500	19000
	K21X25X17		12	21	25	17	12800	21000	19000
22	K22X26X10	29241/22	7.1	22	26	10	8700	12900	18000
	K22X26X13	39241/22	9.4	22	26	13	10000	15400	18000
	K22X26X17	59241/22	12.1	22	26	17	13100	22100	18000
	K22X27X13	29242/22	10.8	22	27	13	14000	23000	18000
	K22X28X17	39243/22	19.7	22	28	17	19000	26500	18000
	K22X28X23	59243/22	26	22	28	23	20000	27000	19000
	K22X29X16	19244/22	22.2	22	29	16	19500	25000	17000
	K22X30X15TN		14.4	22	30	15	19600	22900	17000
	K22X30X20	19245/22	28	22	30	20	21000	23500	18900
	K22X32X24		43.4	22	32	24	33500	39500	16000
23	K23X35X16TN		30	23	35	16	24000	23400	15000
24	K24X28X10		8.1	24	28	10	9400	14300	17000
	K24X28X13		10.1	24	28	13	10500	17000	17000
	K24X28X17	9243/24	13.2	24	28	17	14000	24500	17000
	K24X29X13		13.5	24	29	13	13100	19100	16000
	K24X30X17		21.5	24	30	17	19000	27000	16000
	K24X30X31		39.1	24	30	31	27000	43000	16000
25	K25X29X10	29241/25	8.3	25	29	10	9700	14900	16000
	K25X29X13	39241/25	10.4	25	29	13	10800	17900	16000
	K25X29X17	59241/25	13.7	25	29	17	14500	25500	16000
	K25X30X13	29242/25	12.9	25	30	13	14100	21300	16000
	K25X30X20	59242/25	20.5	25	30	20	21100	28000	16000
	K25X30X25		21	25	30	25	21700	40400	15000
	K25X30X26		21.6	25	30	26	20100	26500	15000
	K25X31X17	39243/25	21.8	25	31	17	19000	28000	16000
	K25X31X21	39243/25	26.2	25	31	21	24100	37500	16000
	K25X32X16	19244/25	24.5	25	32	16	20500	27500	15000
	K25X33X20	19245/25	32	25	33	20	28000	37500	15000
	K25X33X24	29245/25	38.7	25	33	24	33900	46500	15000
	K25X34X18		32	25	34	18	48000	67000	15000
	K25X35X30	39245/25	65.5	25	35	30	46500	61500	14000
	K25X30X26 ZW		27	25	30	26	21000	35000	14000

Our main products

Cargo transport security

Single box package	Carton+PP sack+Nylon strapping	Pallet+Nylon strapping+Black film

Frequently asked questions

Q: What is your minimum order quantity?

A:Small bearing:10 PCS. Big bearing: 1~5 PCS.
Customized bearing: 100~1000 pieces, depends on produce cost. Because for one of small orders costs are likely to be so high when need a new mold.

Q: How can I get a sample of K22 30 24 bearing to check your quality?

A: After price is confirmed, you can require samples of K22 30 24 bearing to check our quality. But you have to afford the express freight.

Q: What information should I let you know if I want to get a quotation?

A: 1)The model number

2) The sizes (ID*OD*B)

3) The material

4) The brand

5) Quantity

6) For customized bearings,if it is possible, please also provide with pictures or drawing for checking. Sample will be best for clarifying, If not, we will recommend relevant products with details for reference.

Company introduction

Company headquarters is located in Jinan. Covers an area of 1000 square meters; Office personnel 20 people, including 9 professionals proficient in many languages, 5 R&D staff has 20 years of work experience, the transportation is convenient, 50 minutes drive from Jinan Yaoqiang air port, 10 minutes from Jinan high-speed railway station. Factory is located in Liaocheng,covers an area of 3000 square meters.There are 120 skilled workers, among whom there are 2 proofing master has 20 years of work experience,two design staff has 10 years work experience, five QC has 15 years work experience;We can produce 10000 bearings every day.

Certification and Hot sale products

Purchase notes

Customized bearings

We can design the bearing according to your required types,sizes and application.
If you have drawing and datasheets, it is better. We will produce the bearing according to your drawing and datasheet totally.

Shipment

Small order for K22 30 24 bearing: by DHL/TNT/FedEx/Aramex ... express;
Large order for K22 30 24 bearing: by air plane/by sea transportation

Delivery

After receiving 100 percent of funds of K22 30 24 bearing to reach the account immediately arrange shipping company.

Receiving

Customers suggested unpack, inspect and sign for the goods when you receive the K22 30 24 bearing. If you find any problem, please contact us. We will help you contact the logistics company.

Issues occurred during use

The service life of the K22 30 24 bearing is not only related to its own quality, but also related to the installation method, load, speed, temperature and daily working hours.
If there is any problem in the use of the K22 30 24 bearing, please provide us with the above information in time so that our technicians can make an accurate and effective analysis.

Exchange

The exchange of K22 30 24 bearing can be in 7 days. If you find serious quality problems may apply replenishment. Before applying, please in our online contact Customer Service staff.
