Dimension(mm) Model
D L D1

L

H

PCD K W A F Perpend-icularity

(µm)

d1×d2×h
(mm) Tole-rance(µm) (mm) Tole-rance

(mm)

Tole-rance

(mm)

28

0

-13

37

0

-0.2

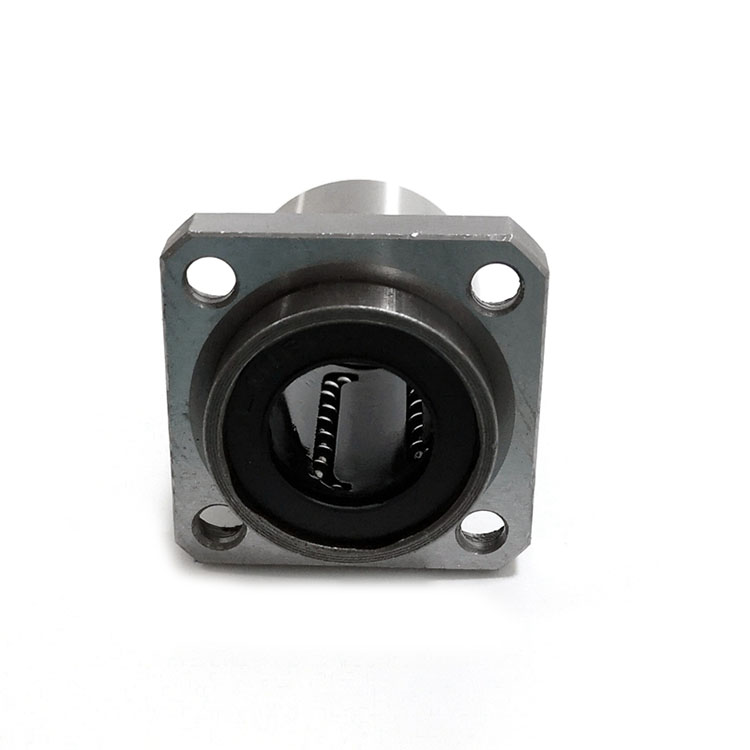

48 0-0.2 6 6 38 37 34 31 22 12 4.5×8×4.4 LMFP/KP/HP 16UU
32 0

-16





42 54 8 8 43 42 38 36 24 15 5.5×9.5×5.4 LMFP/KP/HP 20UU
40 59

0

-0.3

62 8 8 51 50 46 40 32 15 5.5×9.5×5.4 LMFP/KP/HP 25UU
45 64 74 10 10 60 58 51 49 35 15 6.6×11×6.5 LMFP/KP/HP 30UU
52

0

-19

70 82 10 10 67 64 - - - 20 6.6×11×6.5 LMFP/KP 35UU
