Plummer block bearing housing and other types of housing product use and installation location.

1. plummer block bearing housing: P200 series (P203-P220) plummer block bearing housing, P300 series (P305-P328) plummer block bearing housing This type of plummer block bearing housing is equipped with 2 series bearings, 3 series bearings, ties One of the most common and most common types of radial ball bearings is suitable for all transmissions and machines whose shafts are parallel to the mounting surface. The plummer block bearing housing has sufficient strength and rigidity when used.

2, square flange seat: F200 series (F203-F220), F300 series (F305-F328) This type of product is equipped with 2 series bearings, 3 series bearings, generally installed on the side wall of the machine, simple structure, easy to install Suitable for heavy load applications. It is the most widely used one of the flange type housings.

3. Diamond flange seat: FL200 series (F203-F218), FL300 series (FL305-FL315) This type of product is equipped with 2 series bearings and 3 series bearings. The structure is light and easy to install. It is suitable for installation in smaller transmission. Part. The center distance between the two bolt holes is the same as the center distance of the diagonal bolt holes of the same type square seat. Therefore, it is possible to replace the square seat.

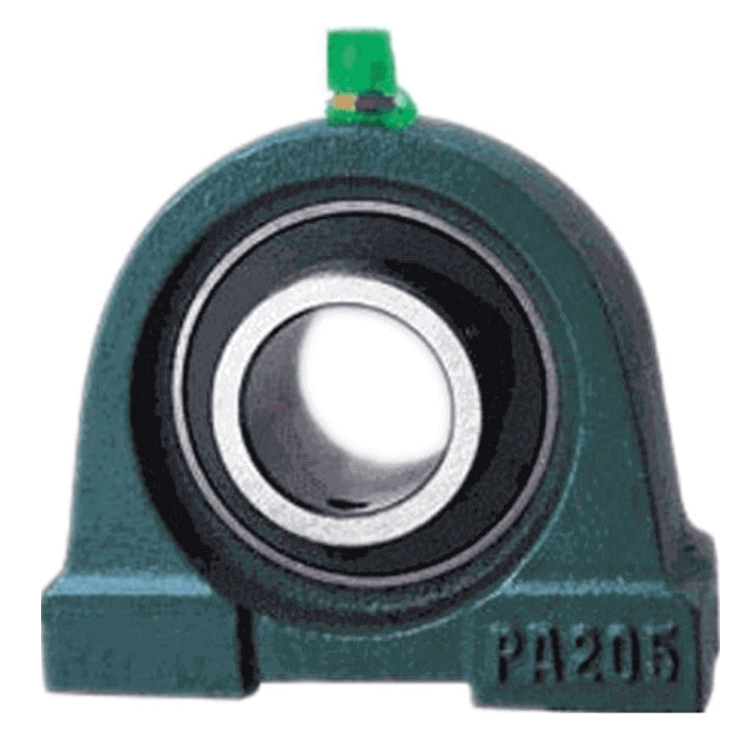

4, narrow plummer block bearing housing: PA200 series (PA203-PA213) plummer block bearing housing, PA300 series (PA305-PA313) plummer block bearing housing This type of plummer block bearing housing with 2 series bearings, 3 series bearings, two at the bottom Mounting screw holes, the width is greatly compressed, plummer block bearing housing is suitable for the installation area limited.

5, high center plummer block bearing housing: PH200 series (PH203-PH213) This type of plummer block bearing housing with 2 series bearings, usage and use consistent with UCP200, the difference between the shaft center height and the ordinary vertical seat.

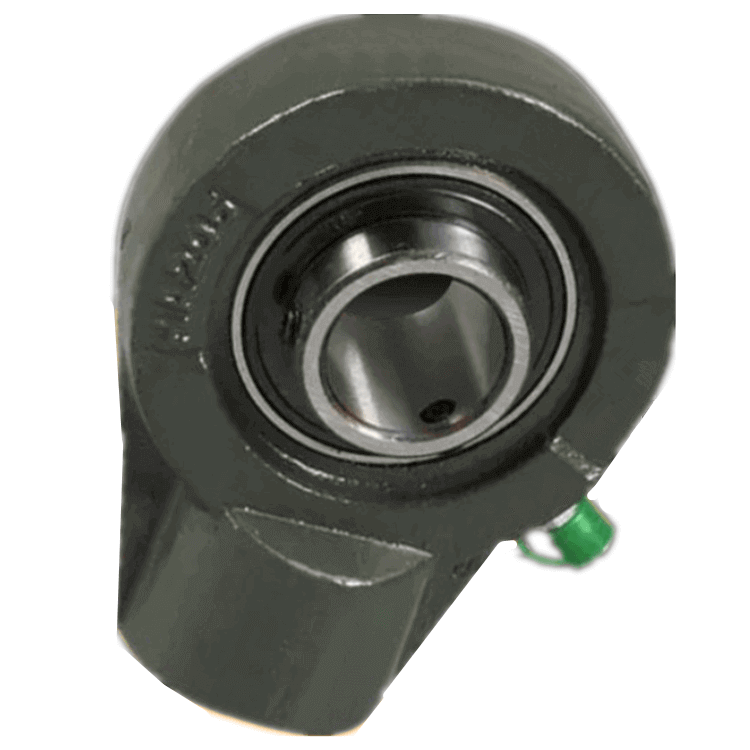

6. Suspension seat: HA200 series (HA203-HA213) This type of product is equipped with 2 series bearings. The bearing seat is equipped with an adjusting screw hole at one end. The bearing seat can be connected to the screw to adjust the installation position, generally under load. Used in smaller occasions.

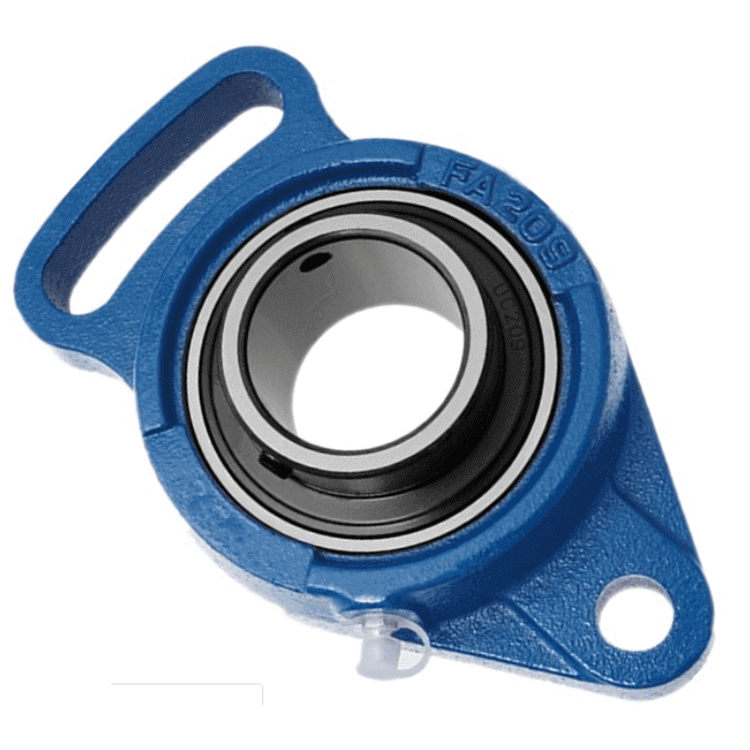

7. Adjustable diamond seat: FA200 series (FA203-FA213) This type of product is equipped with 2 series bearings, which is a deformation of the diamond seat. Change one of the bolts to an arcuate groove located at the center of the other hole. Therefore, the position of the shaft center can be adjusted within a certain range.

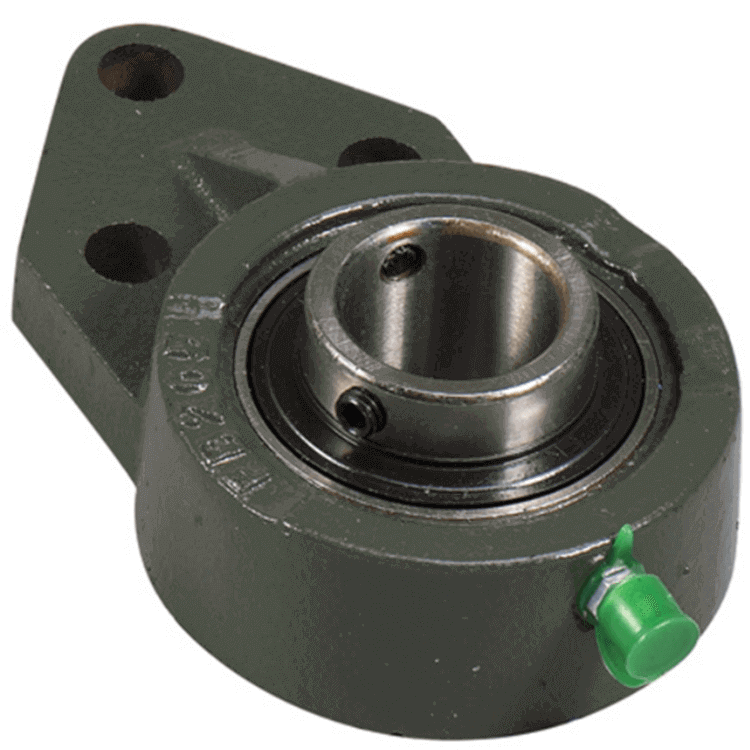

8. Three-hole flange diamond seat: FB200 series (FB203-FB213) This type of product is equipped with 2 series bearings, which is a kind of deformation of the diamond seat. The three mounting bolt holes are concentrated on one side of the seat. It can be used in the vertical position of the mounting surface and can be used instead of the vertical seat.

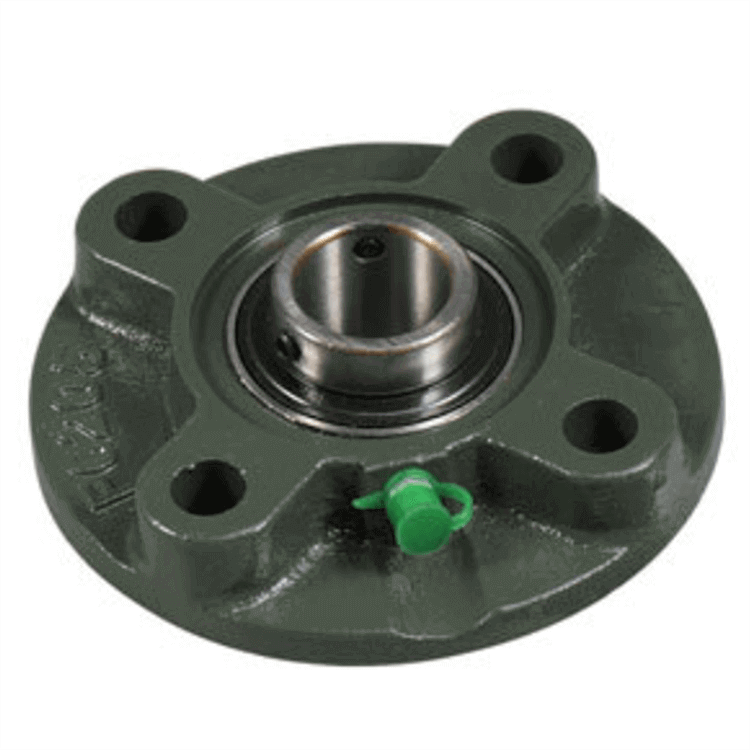

9. Boss round flange seat: FC200 series (FC203-FC220) This type of product is equipped with 2 series bearings, which are round flanged bearing seats with round bosses on the bottom and can be placed in the frame. In the hole, the installation accuracy is high and the positioning is accurate.

10, boss square plummer block bearing housing: FS300 series (FS305-FS328) plummer block bearing housing.This type of product is equipped with 3 series bearings, is a square flange bearing seat and has a round boss on the bottom, which can be placed in the round hole of the frame. Therefore, the installation accuracy is high and the positioning is accurate.

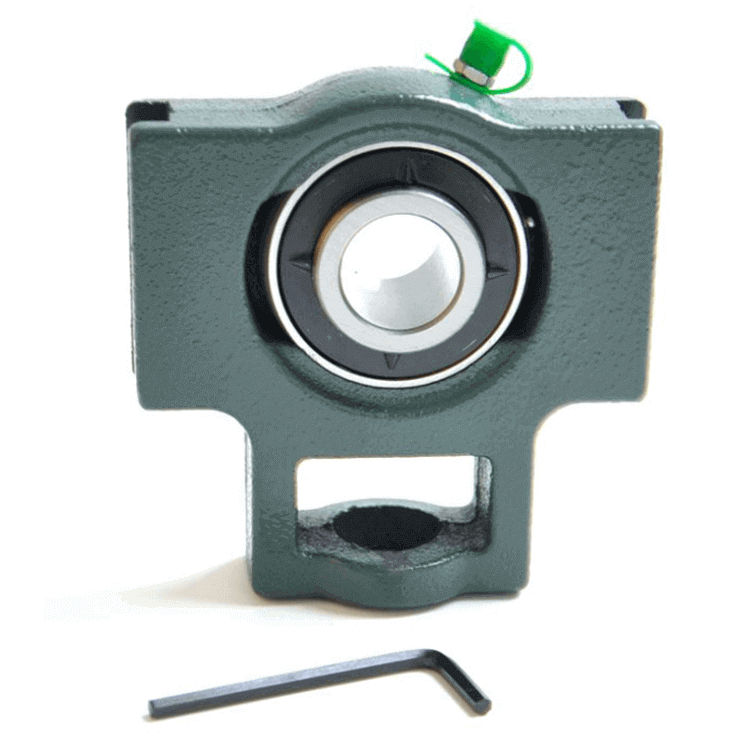

11. Slider seat: T200 series (T203-T220), T300 series (T305-T328), K200 series (K203-K212) This type of product is equipped with 2 series bearings, 3 series bearings, and two chutes on the top and bottom. It can be moved back and forth on the rack. Therefore, it is most suitable for occasions where it is necessary to adjust the distance between the axes. The shaft can also move while the machine is in operation. It is mostly used on belts, chains and other drive shafts. 12. Ring seat: C200 series (C203-C218), C300 series (C305-C328), etc. This type of product is equipped with 2 series bearings, 3 series bearings, outer diameter machining of the bearing housing, which can be embedded in the frame. The bore can withstand large radial loads for use on heavier racks.
