What’s the features of tapered cone bearing?

A tapered cone bearing is a support structure manufactured in industry to connect various parts. Different parts have different structures, so many different types of bearings have been developed. The following small series will introduce the characteristics of tapered roller bearings:
First, the structural characteristics of tapered roller bearings

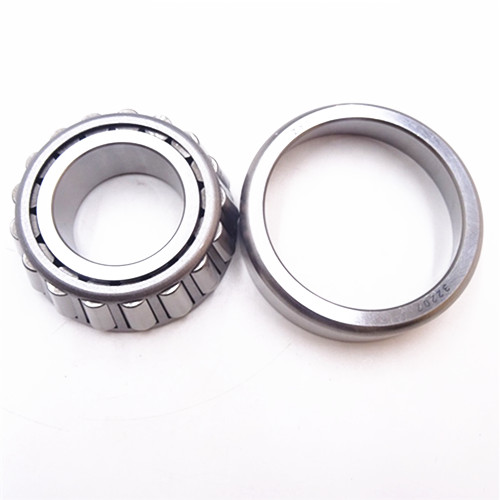

tapered cone bearing are provided with tapered rollers at the top, which are bearing units composed of radial rollers and components, and the inner and outer rings of the bearing have tapered raceways. Since the cross-sectional diameter of the roll is short, but the length is long, it is named tapered roller bearing according to the shape.

Second, the characteristics of tapered cone bearing

Although the cross-sectional diameter of this part is very short, and the size and weight of the part itself is relatively small, its radial structure is compact and has a high load-bearing capacity, so its internal diameter size and load capacity are small compared with other types of bearings, especially suitable for the size limitation of radially mounted support structures.

On the other hand, the raceways of the outer ring of the bearing also play a large role: the load capacity of the bearing is increased by increasing the angle to the contact surface.

In addition, tapered cone bearing have high machining accuracy and high surface hardness, so they can withstand forces several times more than their bearings. Safe to use, tight connection, good performance.
