What are the advantages of ZYSL LV (RV) series v groove guide bearing ?

1,161 Published by admin Apr 28,2019

LV (RV) series v groove guide bearing
The LV (RV) series v groove guide bearing can be widely used for cylindrical guides or 120° V-shaped guide rails. Unlike the LFR series of rollers, the LV series v-groove guide bearing has a large adaptability to the size of the guide rails. Each guide can be fitted with a wide range of guide rail diameters, which can be widely used in heavy-duty guide rails, mobile equipment, and straightening machines.

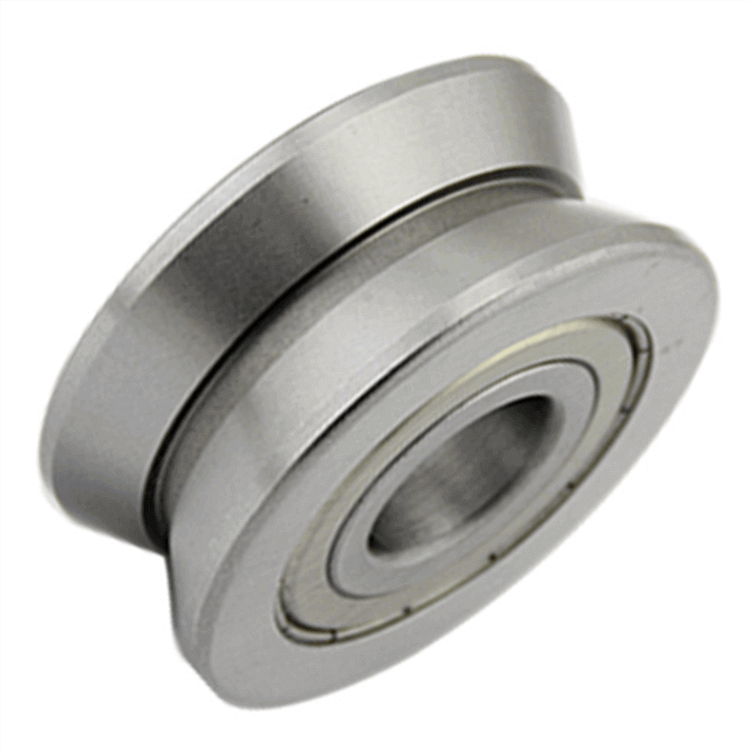

v groove guide bearing factory

The v groove guide bearing adopts the internal structure design of the double row angular contact ball bearing and the thickened outer ring to make the bearing have higher bearing capacity.The v groove guide bearing is made of high-quality bearing steel (AISI52100 or stainless steel AISI440C), heat-treated and precision ground, and filled with long-life high-quality multi-purpose grease. The bearing is dustproof with a metal dust cover. Bearings are also available with bearings with concentric and eccentric shafts.
v Groove guide bearing The outer ring has a relief groove at the bottom of the V-shaped groove. If the undercut is not allowed, the ZYSL bearing company can order the bearing without the undercut, or other V-angle bearings can be customized.

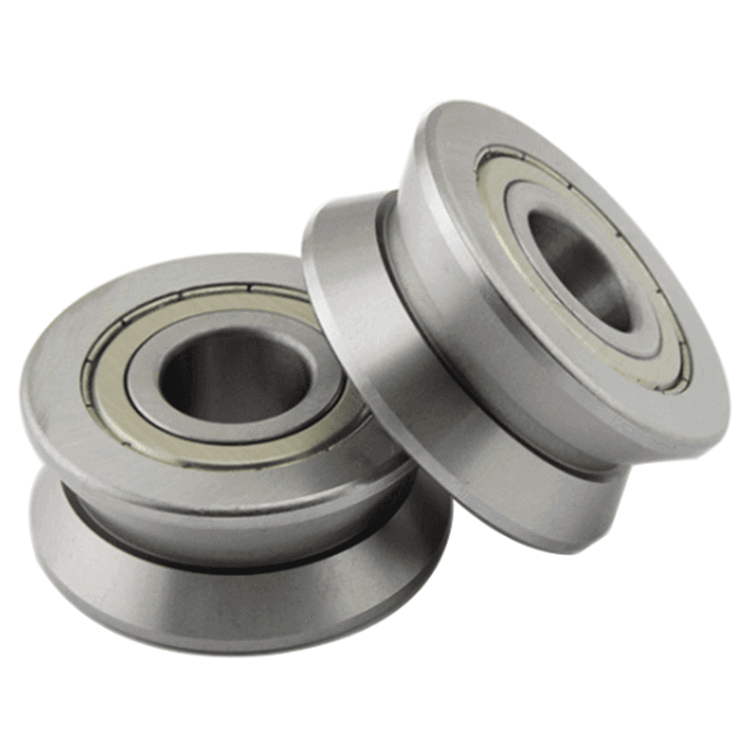

v groove guide bearing manufacturer

The guiding system using the ZYSL bearing (RV) LV series v groove guide bearing has the following features:
1.v groove guide bearing has small resistance, long service life and wide application: ZYSL’s V-shaped surface of LV (RV) series v groove guide bearing has been finely ground and has a surface roughness of Ra0.32. The V-groove of the bearing has a good parallelism with the mounting plane of the inner ring. During operation, the force between the v-groove guide bearing and the cylindrical guide rail is stable, and the friction resistance is small.

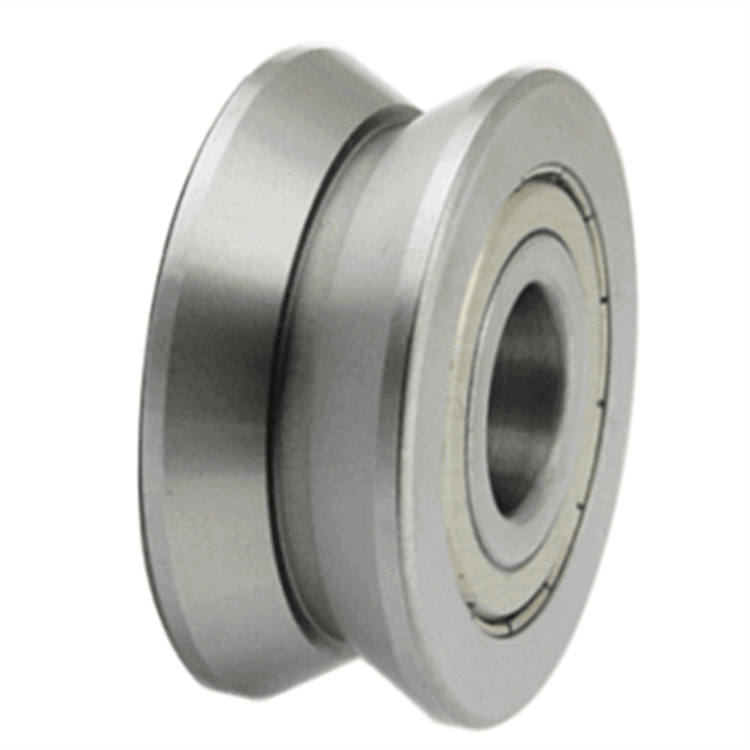

v groove guide bearing producer
2.v groove guide bearing installation is simple and convenient: v groove guide bearing is equipped with eccentric shaft and concentric shaft, which makes the installation very convenient. Adjust the eccentricity of the eccentric bearing to get the proper preload.

If you need v groove guide bearing or other bearings,please contact me any time!

Contact: Miya
Email: ntn@zyslbearing.com
Skype: ntn@zyslbearing.com
MP/Whatsapp: +8618363031398
Wechat:18363031398
