Are these sizes of pillow cast for bearing what you want?

2,700 Published by Jan 11,2021

UCP pillow cast for bearing are also known as outer spherical bearings with vertical seat top thread. The pillow cast for bearing is the most classic and most commonly used form of outer spherical bearings with seat. UCP pillow cast for bearing is suitable for all transmission devices and machines where the shaft is parallel to the mounting surface. UCP pillow cast for bearing standard number: "GB/T7810"

pillow cast for bearing factory

note:
1. The dimensions of UCP201-UCP203 in the table are the same;
2. The diameter of UCP201 is 12, the diameter of UCP202 is 15, and the diameter of UCP203 is 17. Diameters above UCP204 are all multiplied by the last two digits by 5. For example, the diameter of UCP204 is 20mm, and the diameter of UCP205 is 25mm.
3. The first digit after UCP is the bearing series number, 2 is light series, and 3 is heavy series.

The sizes of UCP pillow cast for bearing:

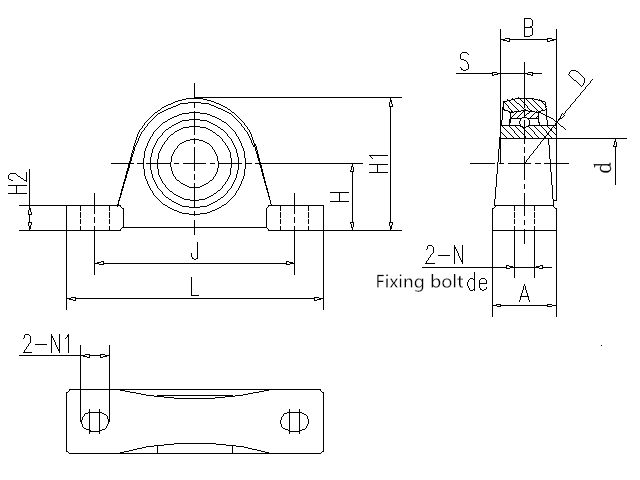

pillow cast for bearing drawing

UCP pillow cast for bearing model no.	UCP pillow cast for bearing sizes(mm)													UCP pillow cast for bearing weight
UCP pillow cast for bearing model no.	d	D	B	S	L	J	H	H1	H2	A	N	N1	de	kg
UCP201	12	47	31	12.7	127	95	30.2	62	14	38	13	19	M10	0.7
UCP202	15	47	31	12.7	127	95	30.2	62	14	38	13	19	M10	0.7
UCP203	17	47	31	12.7	127	95	30.2	62	14	38	13	19	M10	0.7
UCP204	20	47	31	12.7	127	95	33.3	65	14	38	13	19	M10	0.7
UCP205	25	52	34.1	14.3	140	105	36.5	71	15	38	13	19	M10	0.8
UCP206	30	62	38.1	15.9	165	121	42.9	83	17	48	17	23	M14	1.3
UCP207	35	72	42.9	17.5	167	127	47.9	93	18	48	17	23	M14	1.6
UCP208	40	80	49.2	19	184	137	49.2	100	18	54	17	23	M14	1.9
UCP209	45	85	49.2	19	190	146	54	106	20	54	17	23	M14	2.2
UCP210	50	90	51.6	19	206	159	57.2	114	21	60	20	26	M16	2.6
UCP211	55	100	55.6	22.2	219	171	63.5	126	23	60	20	26	M16	3.3
UCP212	60	110	65.1	25.4	241	184	69.8	138	25	70	20	26	M16	4.6
UCP213	65	120	65.1	25.4	265	203	76.2	151	27	70	25	31	M20	5.9
UCP214	70	125	74.6	30.2	266	210	79.4	157	27	72	25	31	M20	6.6
UCP215	75	130	77.8	33.3	275	217	82.6	163	25	74	25	31	M20	7.4
UCP216	80	140	82.6	33.3	292	232	88.9	175	30	78	25	31	M20	9
UCP217	85	150	85.7	34.1	310	247	95.2	187	32	83	25	31	M20	11
UCP218	90	160	96	39.7	327	262	101.6	200	33	88	27	33	M22	13
UCP220	100	180	108	42	380	308	115	225	40	95	30	38	M24	16
UCP305	25	62	38	15	175	132	45	85	15	45	17	20	M14	1.4
UCP306	30	72	43	17	180	140	50	95	18	50	17	20	M14	1.8
UCP307	35	80	48	19	210	160	56	106	20	56	17	25	M14	2.8
UCP308	40	90	52	19	220	170	60	116	22	60	17	27	M14	3
UCP309	45	100	57	22	245	190	67	129	24	67	20	30	M16	4.1
UCP310	50	110	61	22	275	212	75	143	27	75	20	35	M16	5.8
UCP311	55	120	66	25	310	236	80	154	30	80	20	38	M16	7.4
UCP312	60	130	71	26	330	250	85	165	32	85	25	38	M20	9.4
UCP313	65	140	75	30	340	260	90	176	33	90	25	38	M20	10
UCP314	70	150	78	33	360	280	95	187	35	90	27	40	M22	12
UCP315	75	160	82	32	380	290	100	198	35	100	27	40	M22	14
UCP316	80	170	86	34	400	300	106	210	40	110	27	40	M22	18
UCP317	85	180	96	40	420	320	112	220	40	110	33	45	M27	20
UCP318	90	190	96	40	430	330	118	235	45	110	33	45	M27	24
UCP319	95	200	103	41	470	360	125	250	45	120	36	50	M30	29
UCP320	100	215	108	42	490	380	140	275	50	120	36	50	M30	35
UCP321	105	225	112	44	490	380	140	280	50	120	36	50	M30	35
UCP322	110	240	117	46	520	400	150	300	55	140	40	55	M33	45
UCP324	120	260	126	51	570	450	160	320	65	140	40	55	M33	55
UCP326	130	280	135	54	600	480	180	355	75	140	40	55	M33	72
UCP328	140	300	145	59	620	500	200	390	75	140	40	55	M33	89
