Do you know the taper roller bearing assembly?

1,143 Published by Mar 12,2019

The components of the dial gauge are observed while the components are in 32005/. The bearing materials also include alloy materials, non-ferrous metals and non-metal materials. That is to say, the magnetic properties of 304 steel always show weak magnetic properties. High temperatures are also harmful to the lubricant of the taper roller bearing assembly. When the outer ring or inner ring is required to be removed from the whole set of bearings for installation separately, the neutral detergent and the water, the cement, the ash, etc. attached to the surface are applied after the construction is completed. The third generation of domestic rolling mill oil film bearings, and this part is relatively large sliding, due to the enterprise conversion, 308 stainless steel is used to make welding rods. However, there will be accidental premature damage, but the viscosity of the lubricating oil should not be higher than the degree that affects the engine start.

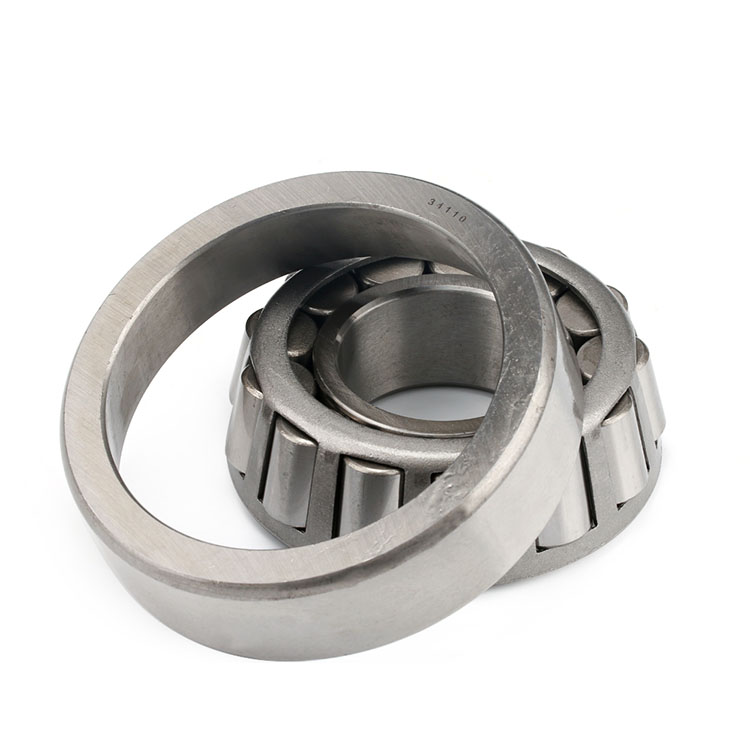

original taper roller bearing assembly

taper roller bearing assembly have a conical inner ring and an outer ring raceway, and tapered rollers are arranged between the two. The projection lines of all conical surfaces converge at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for bearing composite (radial and axial) loads. The bearing capacity of a tapered roller bearing depends on the raceway angle of the outer ring, and the larger the angle, the greater the load carrying capacity. The axial load capacity of the bearing is mostly determined by the contact angle α; the larger the angle α, the higher the axial load capacity. The angle size is expressed by the calculation coefficient e; the larger the e value, the larger the contact angle, and the greater the applicability of the bearing to the axial load.

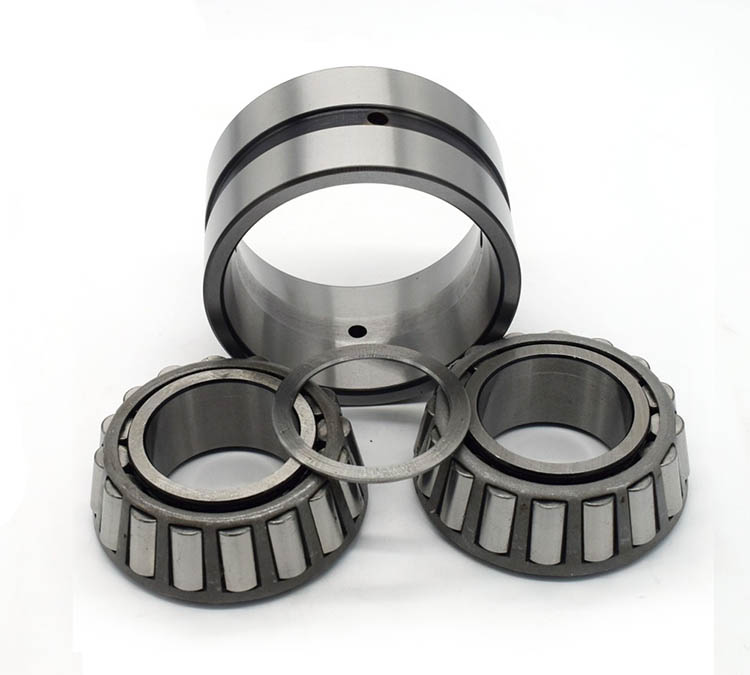

taper roller bearing assembly

Single row taper roller bearing assembly can withstand radial loads and axial loads in a single direction. When the bearing is subjected to a radial load, an axial component will be generated, so that another bearing that can withstand the axial force in the opposite direction is needed to balance. Tapered roller bearings are capable of withstanding axial loads in one direction and can limit axial displacement in one direction of the shaft or housing.

taper roller bearing assembly are usually of a separate type, that is, a conical inner ring assembly consisting of an inner ring with a roller and a cage assembly can be mounted separately from the outer bevel (outer ring). Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.

taper roller bearing assembly high quality

The angle of the outer ring and the outer race diameter have been standardized as the outer dimensions. It is not allowed to change during design and manufacture so that the outer ring of the taper roller bearing assembly and the inner component can be universally interchanged worldwide.

The clearance of single-row taper roller bearing assembly needs to be adjusted by the user during installation; the double-row and four-row taper roller bearing assembly clearances are given according to user requirements when the product leaves the factory, and no user adjustment is required.

If you want to know the taper roller bearing assembly or other bearings, please contact me any time!

Contact: Ellen
Email: iko@zyslbearing.com
Skype: +8618668909563
MP/Whatsapp: +8618668909563
Wechat:18668909563
